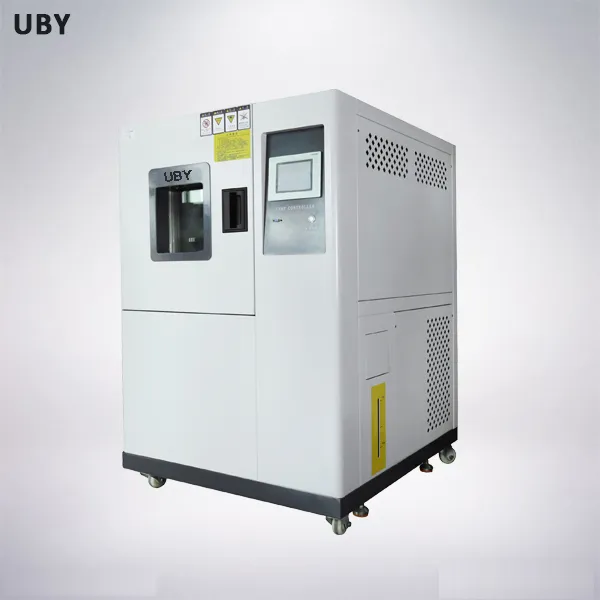

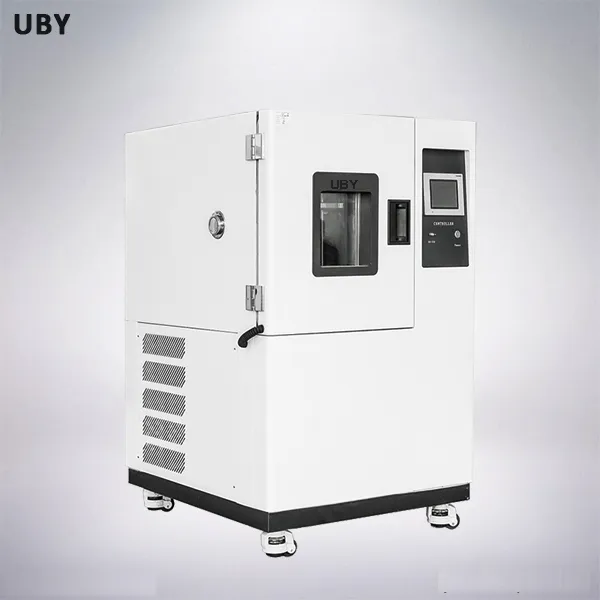

UP-6111 High-humidity Temperature And Humidity Test Chamber With Steam Generator
Features:
1. The chamber boasts strategically placed cable ports on the left-hand side, facilitating straightforward electrical connections for specimen measurements or power supply applications.
2. Equipped with robust hinges, the door is designed to stay open without the risk of accidental closure, ensuring uninterrupted access and observation during testing.
3. This chamber is meticulously crafted to meet and exceed the stringent requirements of leading environmental testing standards, including IEC, JEDEC, and SAE, ensuring reliability and consistency in test results.
4.The chamber operates with high performance, maintaining a noise level of just 80 dBA, providing a quiet testing environment that is conducive to accurate data collection and analysis.
Product Description: Precise Temperature Control: This 100 liter Lab Rapid-Rate Thermal Cycle Chamber offers a temperature range of -70°C to +180°C, ensuring that your experiments and tests are conducted under precise and controlled conditions.
WQide Humidity Range: The chamber allows for a humidity range of 10% to 98% RH, making it suitable for a variety of applications, including testing and validation of products in various environmental conditions.
Customization Options: The product provides OEM and ODM customization support, allowing users to tailor the chamber to their specific needs and requirements, whether it's for a particular industry or user input.
Large Capacity: With a working capacity of 100 liters, this chamber is ideal for laboratories and testing facilities that require a large capacity for testing and validation of products.
Reliability and Durability: Backed by a 1-year warranty, this chamber is built to last, ensuring that it provides reliable and consistent performance over an extended period of time. APPLICATION: 1. To simulate test environment with different temperature and humidity.
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, and drying test. DESIGN FEATURES OF THE CHAMBER: 1. It has cable ports are provided on the left side to allow easy wiring of specimens for measurement or voltage application.
2. The door equipped with hinges preventing auto-closing.
3. It can designed to comply with major environmental test standards like IEC, JEDEC, SAE and etc.
4. This chamber is safety tested with CE certificate. PROGRAMMABLE CONTROLLER: 1. It adopts high-precision programmable touch screen controller for easy and stable operation.
2. Step types includes ramp, soak, jump, auto-start, and end. Product Paramenters:
| Item |
Specification |
| Internal Dimension (W*D*H) |
1000*800*1000mm |
| External Dimension (W*D*H) |
1580*1700*2260mm |
| Working Capacity |
800 liter |
| Material of Internal Chamber |
SUS#304 stainless steel, mirror finished |
| Material of External Chamber |
stainless steel with paint spray |
| Temperature Range |
-70ºC~+180ºC |
| Temperature Fluctuation |
±1ºC |
| Heating Rate |
5ºC/min |
| Cooling Rate |
5ºC/min |
| Sample Tray |
SUS#304 stainless steel, 3pcs |
| Testing Hole |
diameter 50mm, for cable routing |
| Power |
three-phase, 380V/50Hz |
| Safety Protection Device |
leakage
over-temperature
compressor over-voltage and overload
heater short circuit |
| Insulation material |
Compound material without sweating, special for low pressure |
| Heating Method |
Electrical |
| Compressor |
Imported new generation with low noise |
| Safety protection device |
Protection for leakage
Over-temperature
Compressor over voltage and overload
Heater short circuit |
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.
4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
